Overview

Our Medium frequency induction furnace is used for melting iron, steel, Cast Iron, alloy metal, Cast Steel, Aluminum, Non-Ferrous Metals.

Available capacities of induction furnace include 0.5 ton, 1 ton, 1.5 tons, 2 tons, 3 tons, and larger sizes.

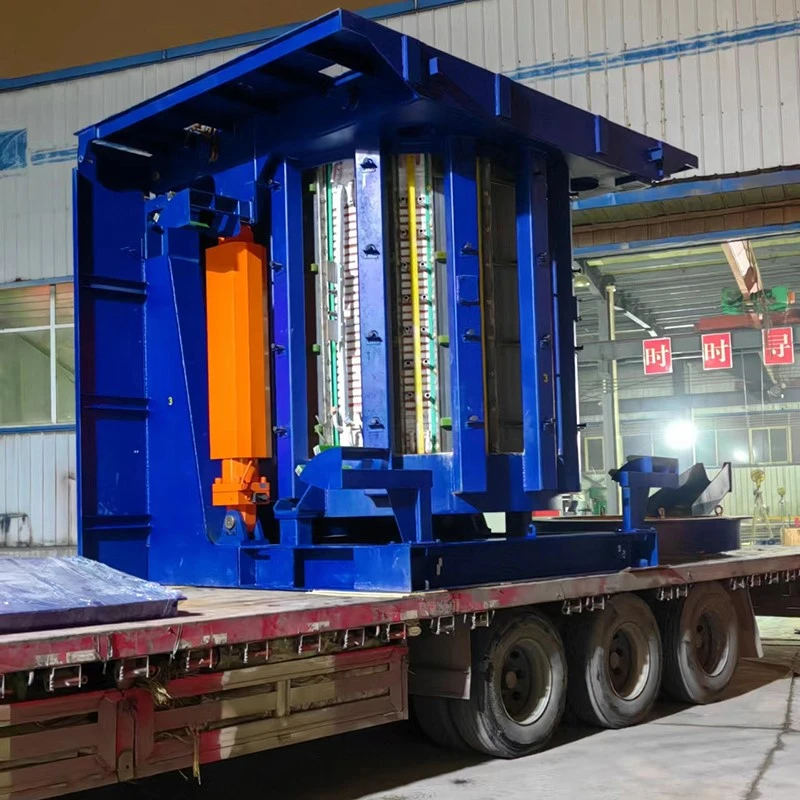

steel shell furnace of Medium frequency induction furnace

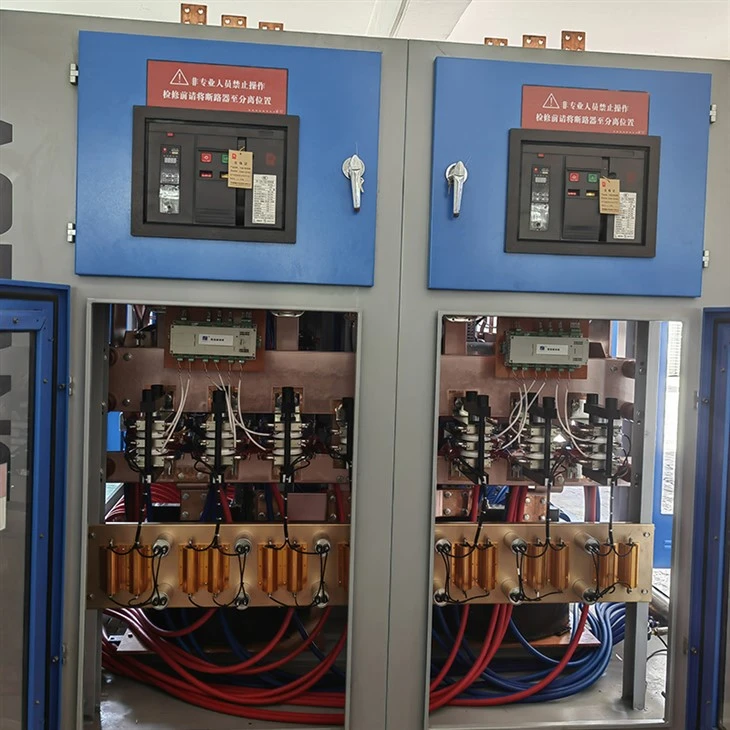

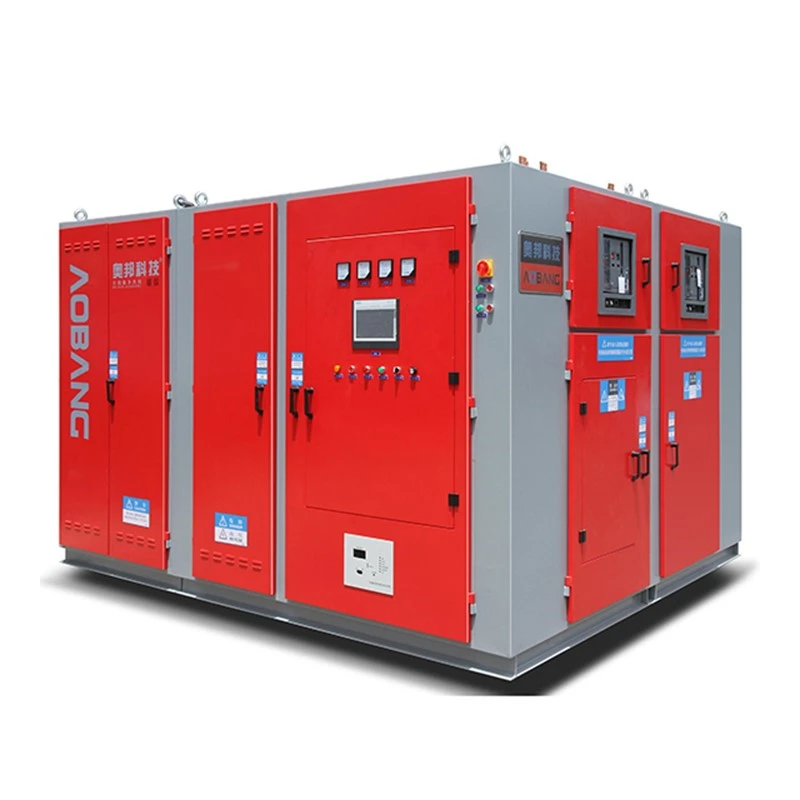

power supply of Medium frequency furnace

our strengths

25 years of experience

Our company was established in 2001.

Manufacturer

We have a factory. The department includes the Production Department, the Research and Development Department, the After-sales Department, the Sales Department, the Foreign Trade Department, the Purchasing Department, and the Quality Department, etc.

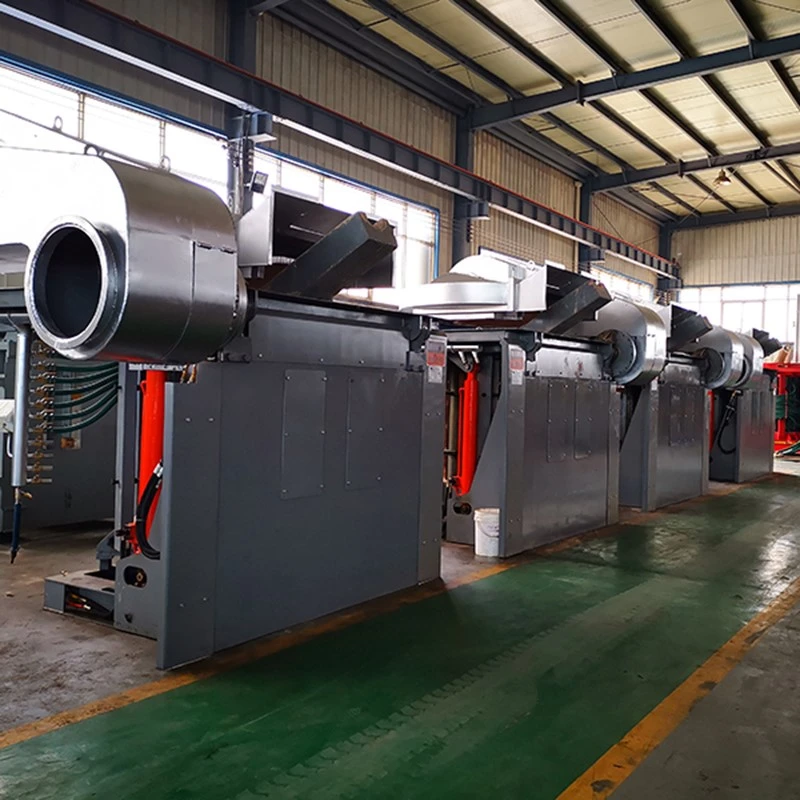

medium frequency induction furnace workshop

Sales market: 20 countries

Egypt, Russia, Myanmar, Zambia, Kazakhstan, Nigeria...

Overseas project installation team

We offer installation and commissioning services for overseas projects.

Specifications of Medium frequency Coreless Induction Melting Furnace

Rated capacity ( Ton )	Rated power (kw)
Rated capacity ( Ton )	Rated power (kw)
0.5 ton	500
1 ton	500
1 ton	1000
1.5 ton	1000
2 ton	1250
2 ton Medium frequency furnace	1500
2 ton	2000
3 ton	2000
3 ton	2500
5 ton	2500
5 ton	3000
5 ton	3500
8 ton	5000
8 ton	6000
10 ton	6000
10 ton	8000
12 ton	8000
15 ton	10000
20 ton Induction Melting Furnace	12000
20 Tons-30 Tons	/
40 Tons-60 Tons	/

Principle

In a coreless induction furnace, the cylindrical induction coils extend around the refractory crucible, covering 80% of its height. As the entire furnace volume is subjected to the electromagnetic field, the metal inside is heated and melted. Coreless induction furnace can work at higher power densities. A key advantage is that the metal within the furnace undergoes vigorous inductive stirring.

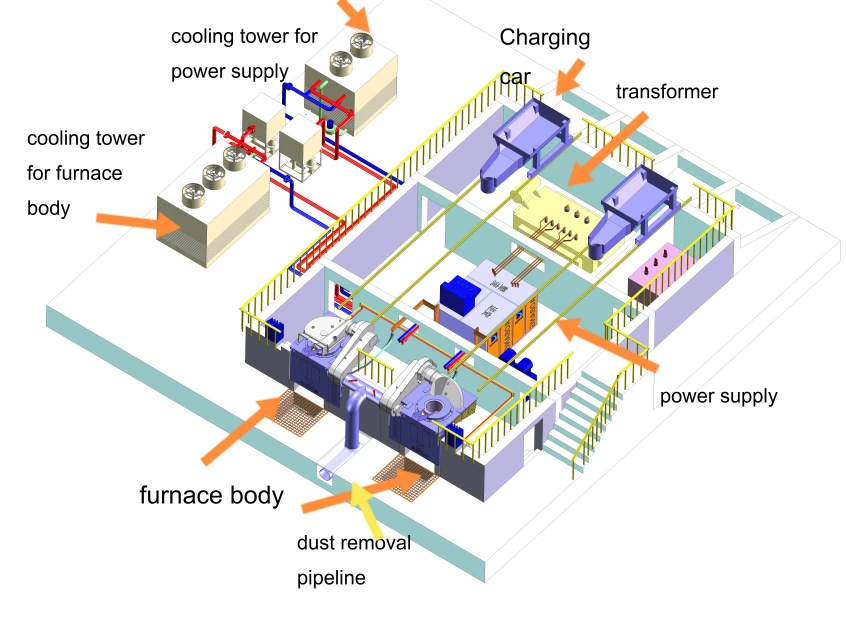

Medium frequency induction furnace Layout

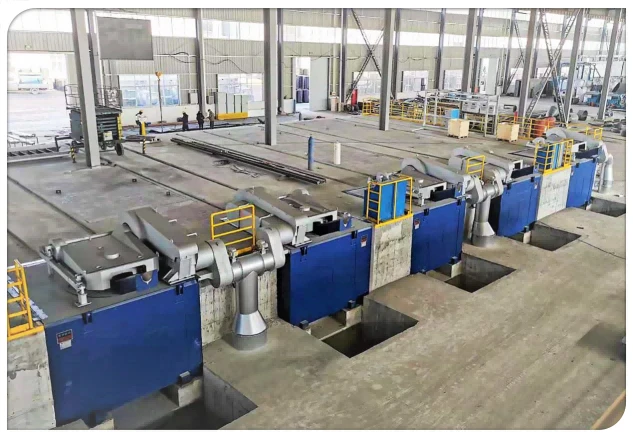

Medium frequency induction furnace installation Layout

induction furnace Configuration

The solution for Medium frequency induction furnace is as follows.

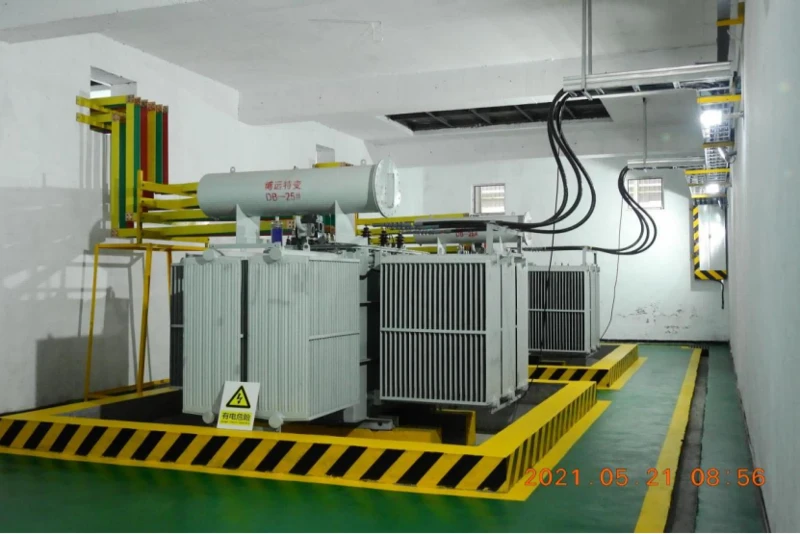

Transformer

Transformer specification is Copper windings, impact-resistant, 12-pulse design.

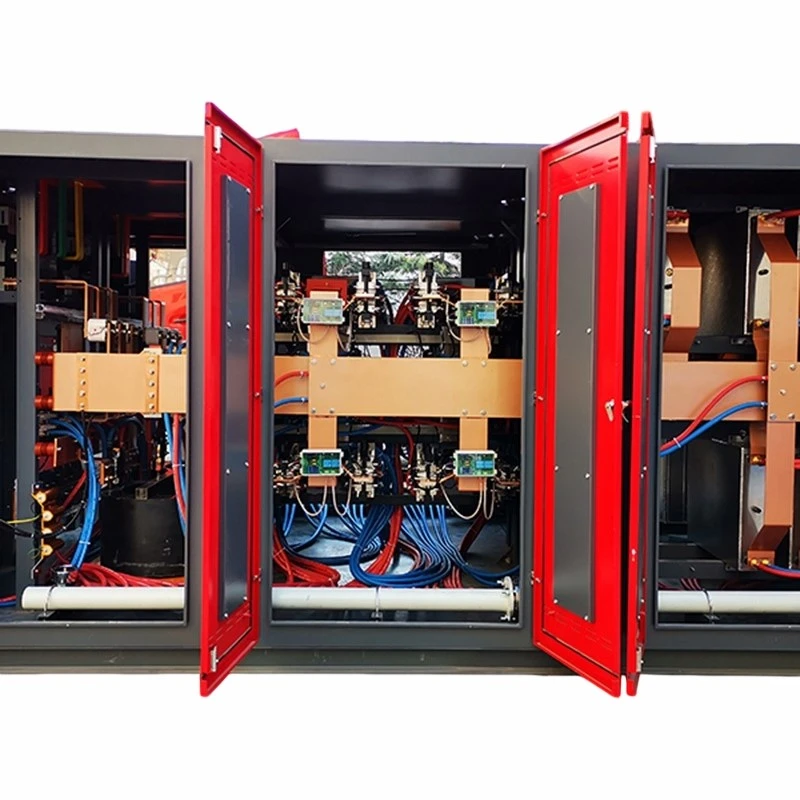

Power supply cabinet

The power supply cabinet has rectifier and inverter sections. Configuration is 6-phase, 12-pulse. Components of power supply include circuit breakers, air-core reactors, rectifier thyristors, inverter thyristors, etc. Operating power factor: ≥0.95.

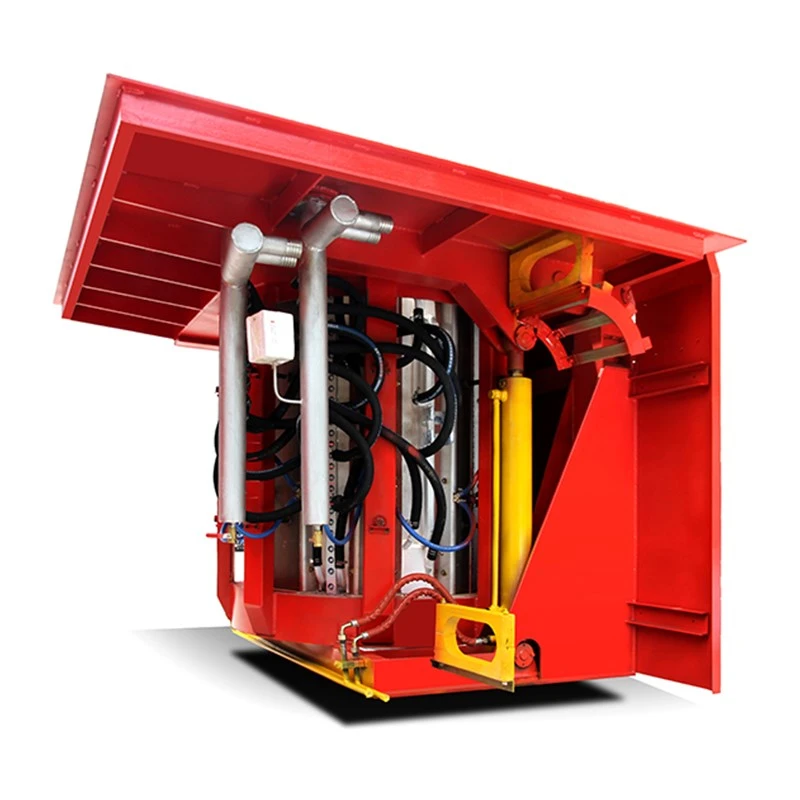

furnace

The furnace assembly includes furnace frame, hydraulic cylinder, refractory-coated induction coils, and water-free magnetic yoke. As for Protective devices, it is such as temperature gauge, pressure gauge, temperature switches, and differential pressure switches, which are installed on the furnace's water inlet and outlet manifolds.

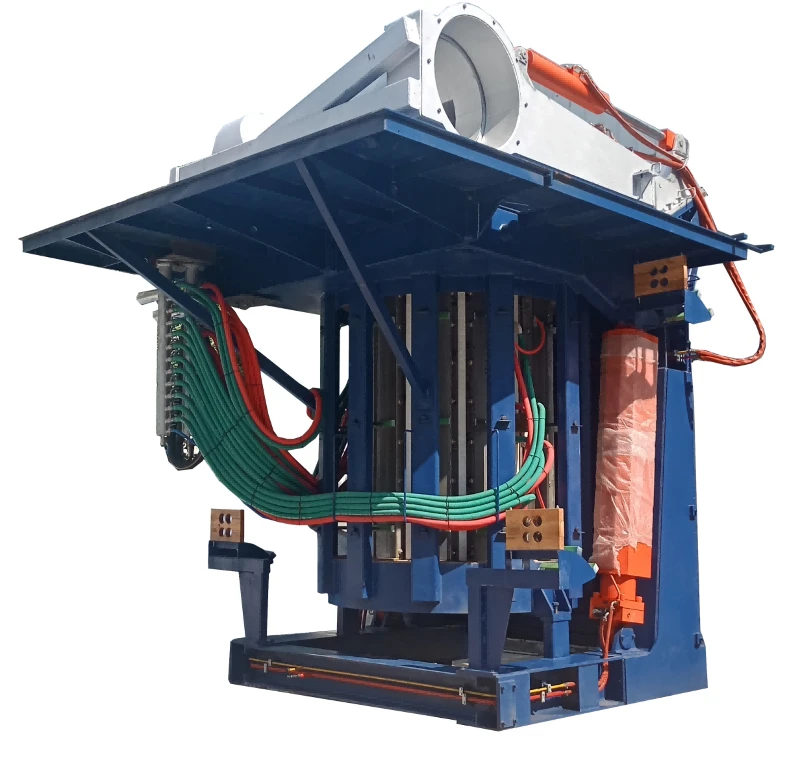

furnace cover

Cyclone dust-removal furnace cover includes hydraulic cylinder.

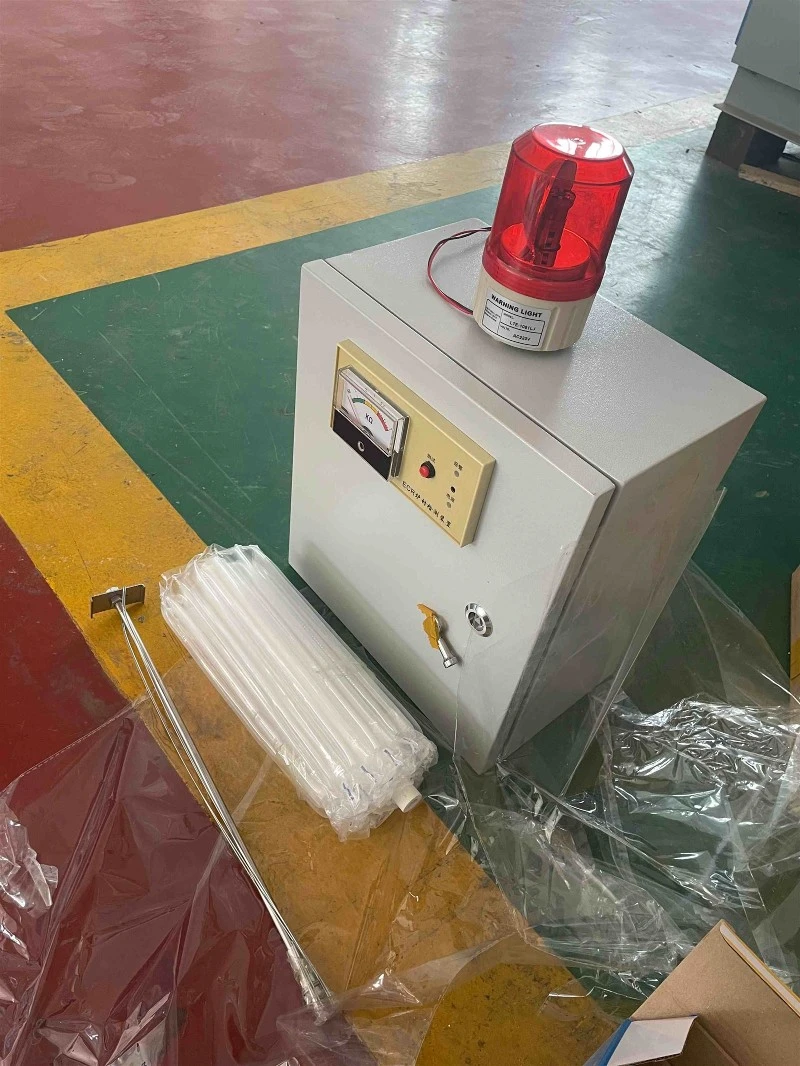

Furnace leakage alarm system

Furnace leakage alarm system is DC injection type, which is designed to assist in preventing furnace leakage. The Furnace leakage alarm system includes indicator light, an ammeter, detection & control circuitry, and side & bottom electrodes.

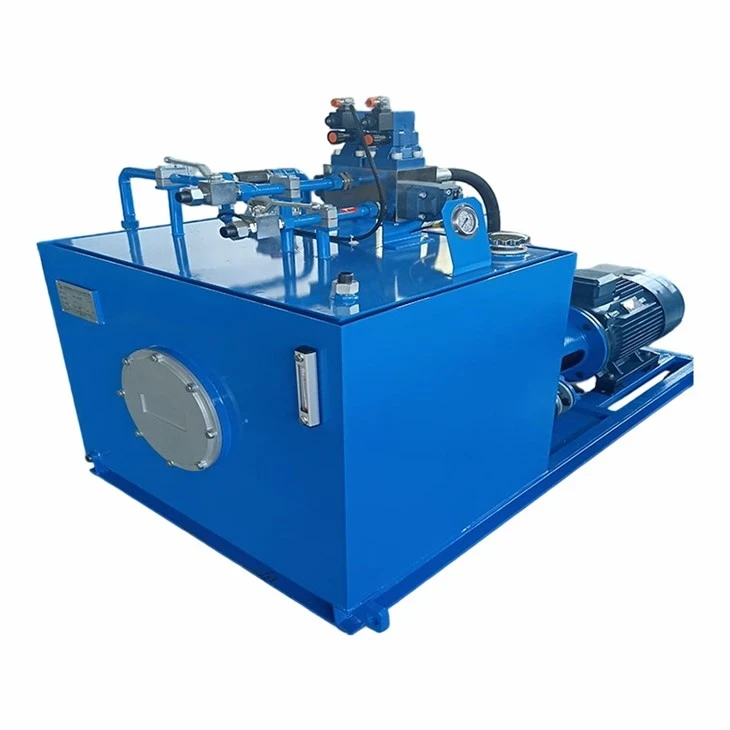

Hydraulic system for furnace

Hydraulic system Includes hydraulic pump, drive motor, hydraulic oil tank, throttle valves, hydraulic components, etc. High-pressure hoses are used for piping connections. Configuration of Hydraulic system is Dual-pump and dual-motor setup.

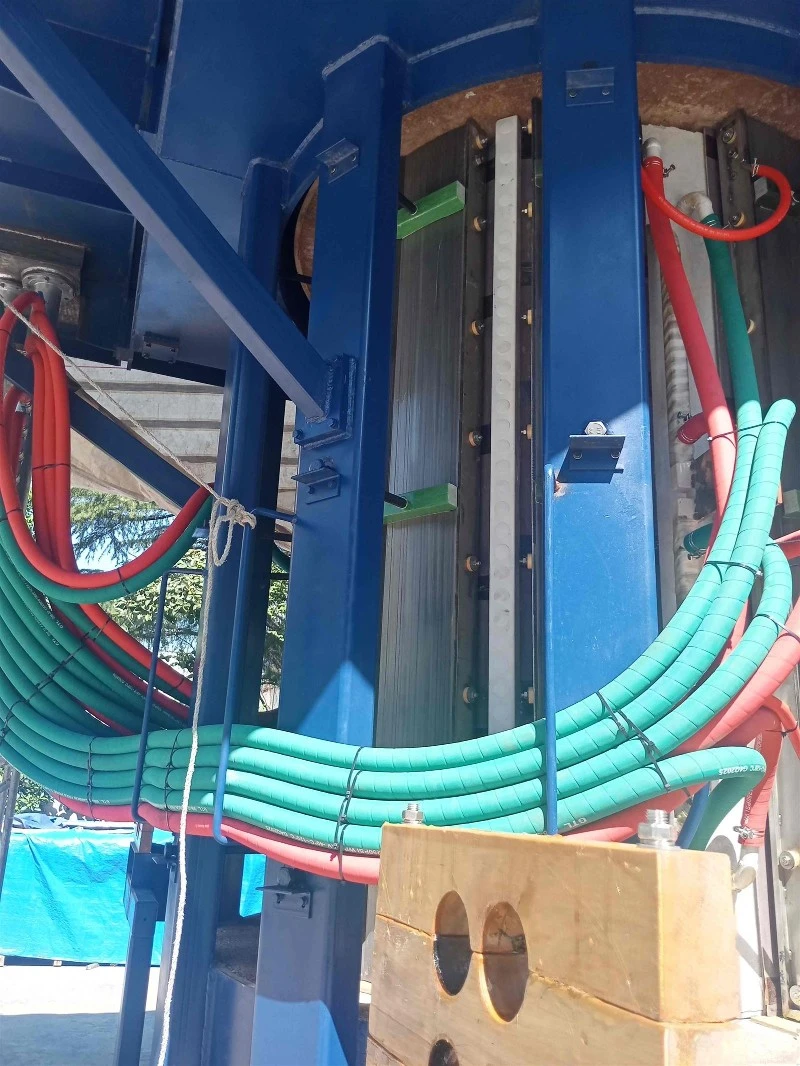

water-cooled cables

Four water-cooled cables are supplied for one furnace, which include T2 stranded copper conductors and carbon-free hoses.

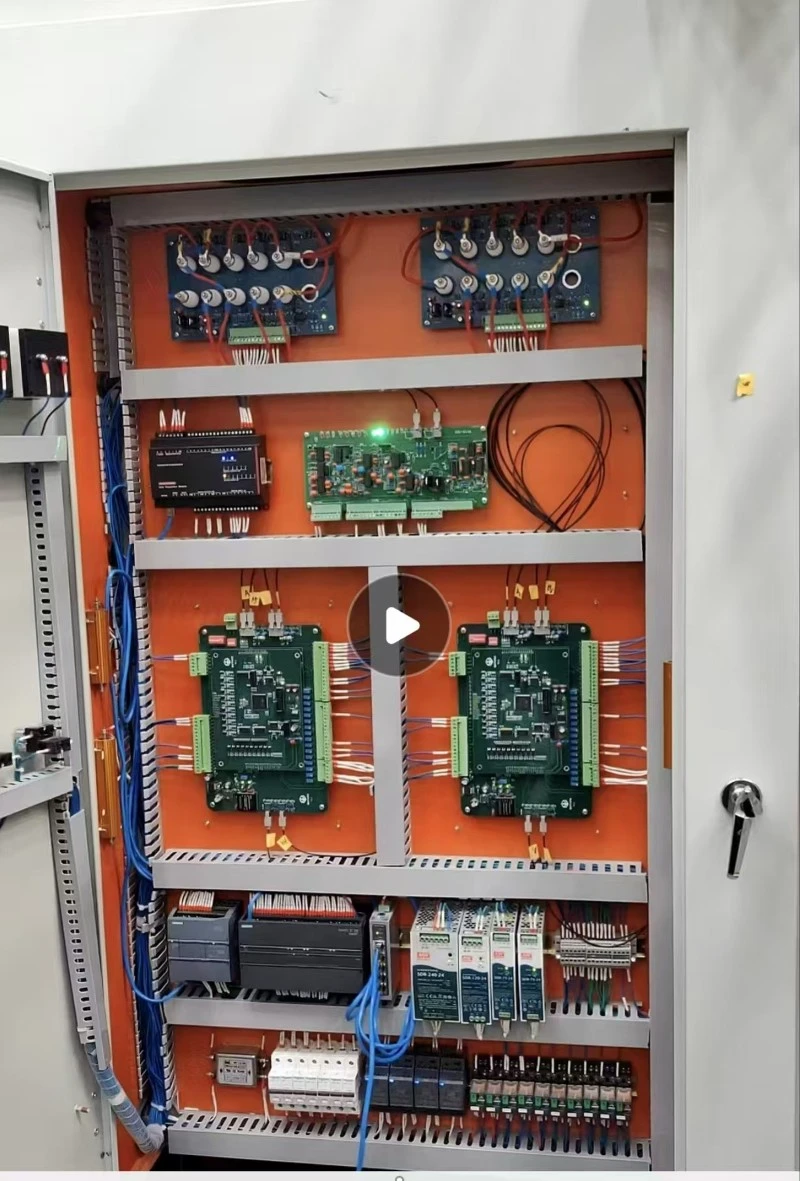

Main control PLC and HMI

Main control PLC and remote operation console can achieve remote equipment management and remote HMI control.

our metal induction melting success case

Medium frequency induction furnace project

The solution provided to our customer is a 1250 kW, 1.5 ton medium-frequency induction melting furnace, which includes the following parts:

1. One power supply : 1250 kW series-type medium-frequency power supply (6-phase, 12-pulse configuration).

2. Two furnace bodies, each with a rated capacity of 1.5 tonnes. The furnaces can operate simultaneously. one is for melting while the other maintains the melting temperature.

3. One 1500 kVA rectifier transformer is to supply power to the medium-frequency power supply.

4. One 300 L hydraulic station system is to power furnace tilting, as well as lid rotation and lifting operations.

5. Two closed-circuit water cooling towers: a 40 t/h unit is for cooling the medium-frequency power supply, and a 100 t/h unit is for cooling the two furnace bodies.

6. Open-type steel-shell furnace bodies are equipped with multiple leakage alarm system.

7. Local control console and furnace tilting control console include auxiliary equipment, such as a furnace lining push-out device, crucible form, and necessary safety devices.

8. A networked melting management system is consisted of a management computer, digital control boards, a main control PLC and a mobile app. The system supports expansion via industrial switches and interfaces with the plant-wide industrial IoT, enterprise management systems, remote diagnostics, engineering maintenance systems, and three-level network architectures.

our project installation and furnace working site

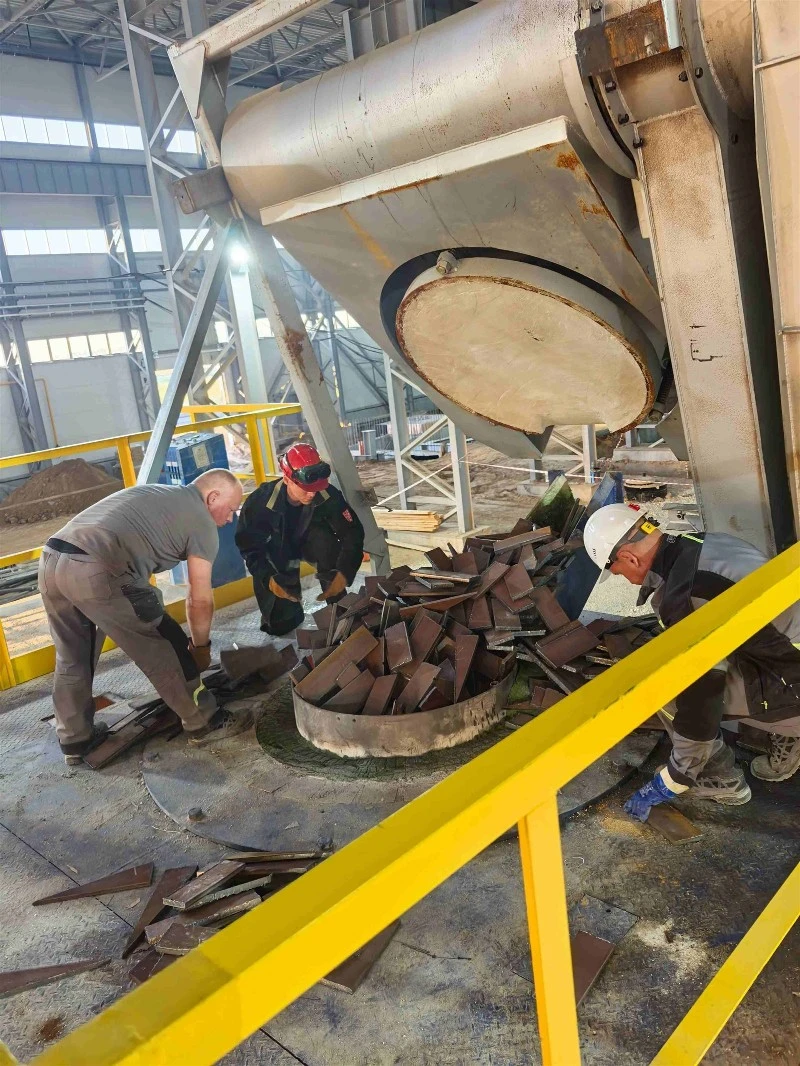

Feeding site of induction melting furnace

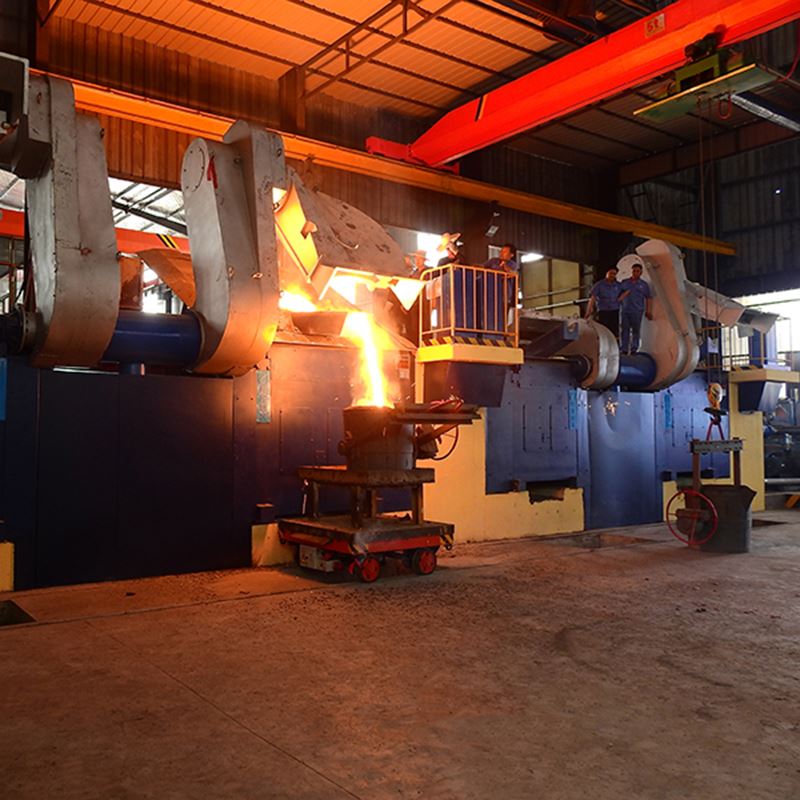

induction melting furnace pouring molten steel

The induction furnace pours out the molten steel.

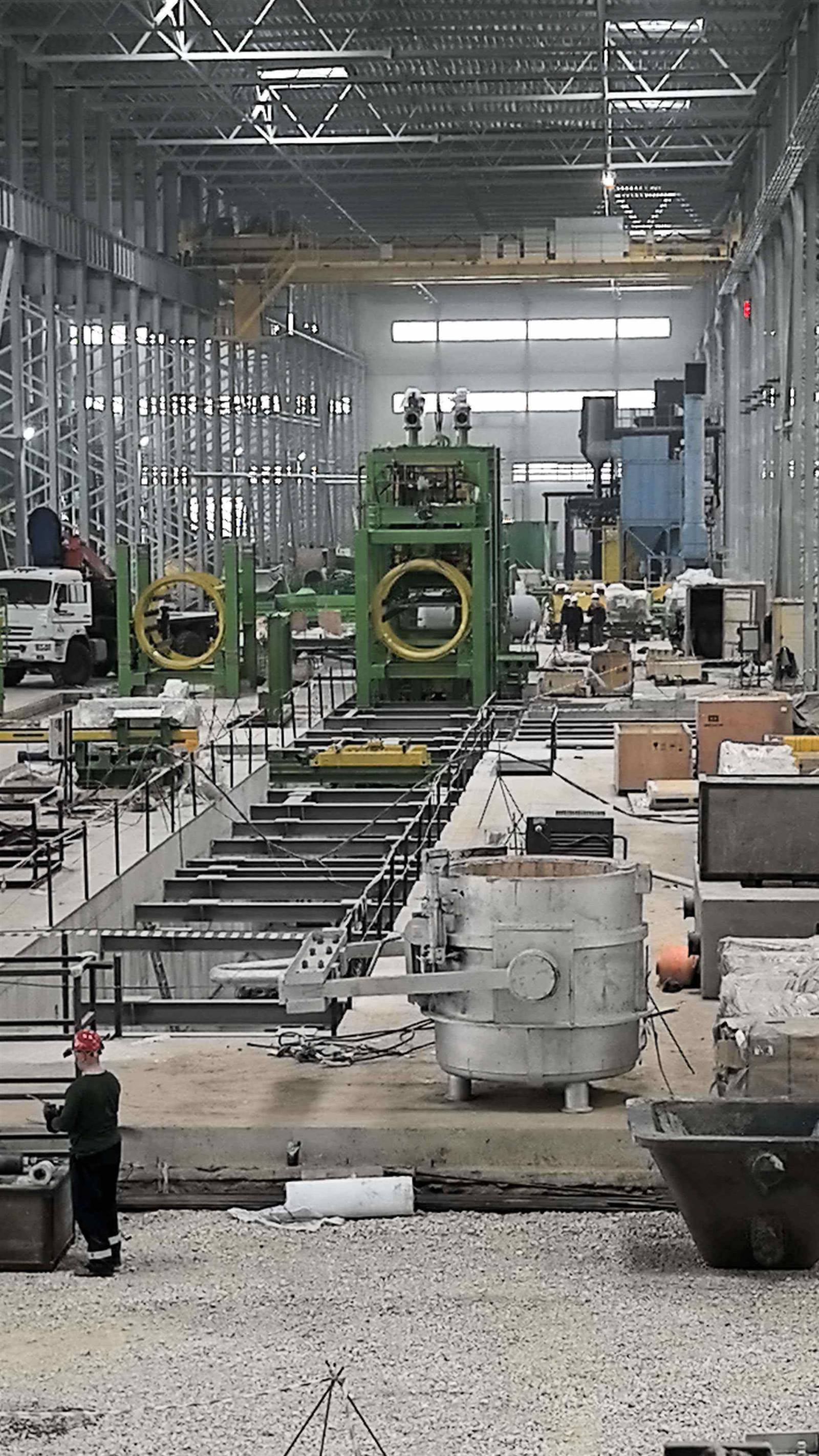

Transfer steel ladle

specifications of 1.5 ton medium-frequency induction melting furnace

The specifications of 1.5 ton medium frequency induction furnace

Items	Parameters
Type of induction melting furnace	Series resonant power supply , one power supply and two furnaces
Rated capacity	1.5 ton
Maximum capacity	1.8 ton
Application	Phosphorous pig iron
Lining thickness	90mm–120mm
Operating temperature	1500℃
Maximum operating temperature	1650℃
Tilting method	Hydraulically controlled push-rod type
Maximum tilting angle	95°
Hydraulic medium	Wear-resistant hydraulic oil
Hydraulic tank capacity	300L
Hydraulic working pressure	12MPa
Furnace structure	Steel shell open type, hydraulic tilting
Furnace cable outlet method	Rear / Side outlet
Melting power consumption: 530–550 kWh/t.
Melting rate: 45 min/heat. One 1.5 ton furnace is operated at 1250KW. Under hot furnace condition, 1.5 ton of clean and high-quality charge is heated to 1500℃.
MF power supply rectifier power	1250KW
MF power supply inverter power	1250KW
power supply frequency	500Hz
rectifier configuration	6-phase, 12-pulse
Power supply input voltage	660V
DC voltage	891V
voltage	2400V
Induction coils voltage	2400V
Medium-frequency power supply start-up success rate	100%
Operating power factor	≥0.95
Transformer voltage	primary 10kV, secondary 660V
Single transformer capacity	1500kVA

relatived products patents

An induction protection device for the series-connected power supply of medium-frequency induction furnace

A blank-feeding device for medium-frequency furnace

An automatic chip-pushing device for medium-frequency furnace

A wiring device for series-connected power supply

A coil structure for induction melting furnace

A ceramic insulating frame for medium-frequency furnace coils

Our Certificate

Patent Certificate for An Intelligent Control System for Induction Heating Furnaces

Patent Certificate for A Medium-Frequency Induction Melting Furnace with an Integrated Furnace Roof Structure

Patent Certificate for A Multi-Station Induction Heating and Extrusion System for Alloy Steel

Frequently Asked Questions

Frequently Asked Questions about Medium Frequency Induction Melting Furnace

1.Can the Medium Frequency Induction Melting Furnace Melt Non-Ferrous Metals?

Yes. Medium frequency induction furnaces can melt Non-Ferrous Metals.
2.Can the Medium Frequency Induction Melting Furnace Melt Iron?

Yes. Medium frequency furnaces can melt Iron.

3.Can the Medium Frequency Induction Melting Furnace Melt Steel?

Yes. Medium-frequency furnace can melt Steel.
4.Can the Medium Frequency Induction Melting Furnace Melt Cast Iron?

Yes. Coreless IF furnace can melt Cast Iron.
5.Can the Medium Frequency Induction Melting Furnace Melt Cast Steel?

Yes. Coreless induction furnace can melt Cast Steel.
6.Can the Medium Frequency Induction Melting Furnace Melt Aluminum?

Yes. The induction melting furnace can melt Aluminum.
7.Can the Medium Frequency Induction Melting Furnace Melt Copper?

Yes. The Intermediate Frequency Furnace can melt Copper.
